The XRE6869S is ideal for 68mm compressor inducer limited class racing. This turbo uses the largest compressor wheel allowed, which is paired to the ground breaking 69mm UHF turbine wheel that outflows the competitor's much larger turbine wheels. By having a smaller turbine wheel, rotating mass is significantly reduced which results in greater response and overall improved drivability. All of the flow, none of the lag.
The revolutionary UHF™ aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

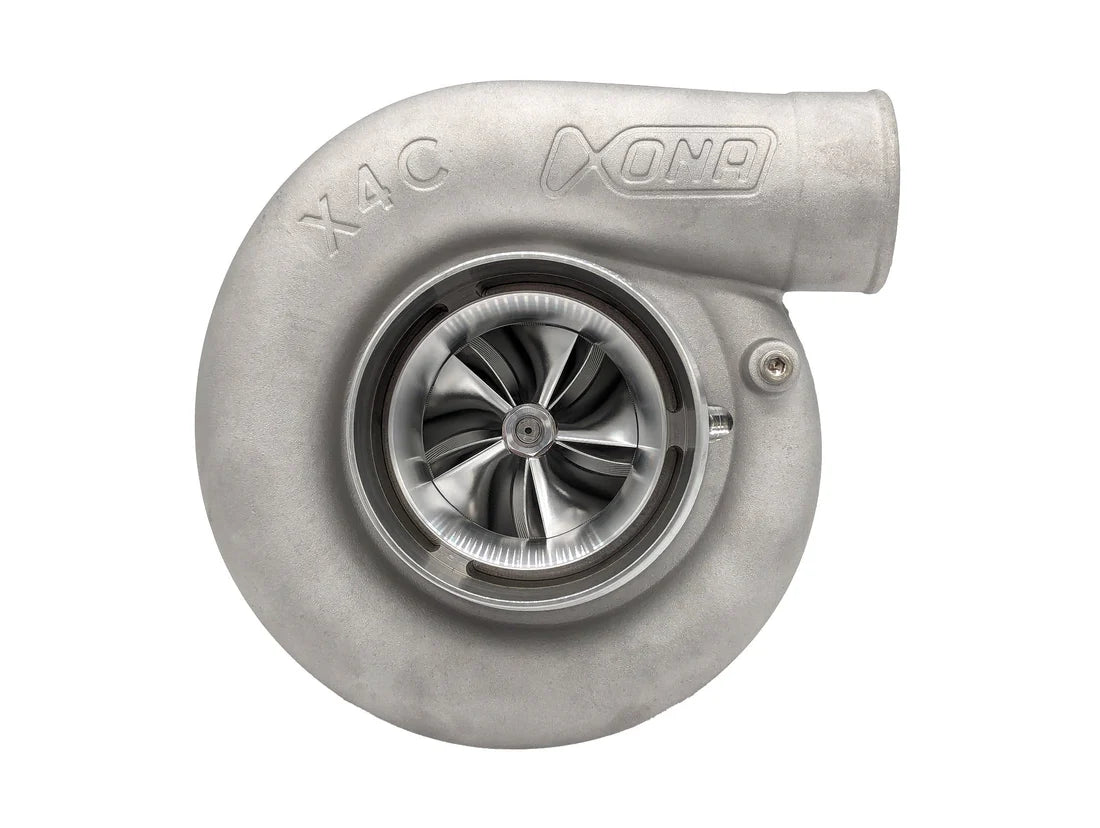

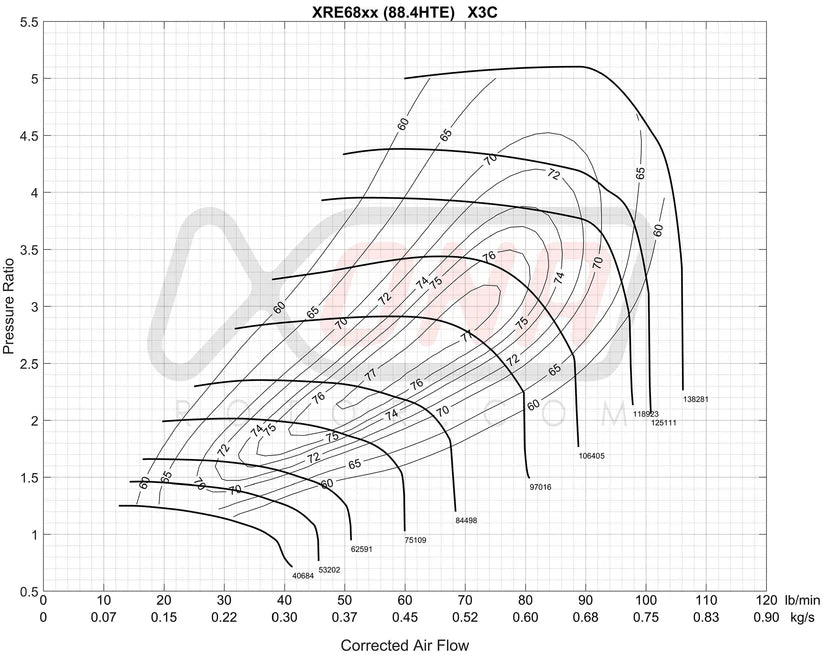

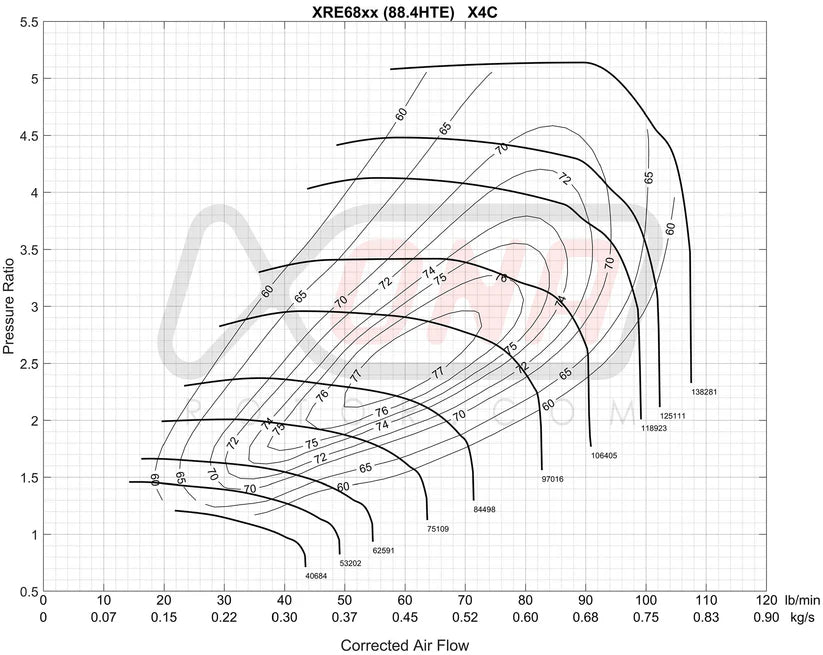

This turbocharger is available in either an X3C or X4C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.
Technical Specifications:
- Compressor wheel - 67.9mm Inducer / 88.4mm Exducer.
- Turbine Outlet - 69mm.
- 700-1050HP Applications.
- Variable preload angular contact bearings.
- Twin gas ring seals at the compressor and turbine.
- High strength, lightweight stainless steel center housing.
- Full hydraulic damping of the rotating assembly.
- Integrated oil contaminate filter.
- M62 race material allows higher temperature operation.
- Metallic bearing cages.
Attention:
All Xona Rotor turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
Notice:
We recommend monitoring a speed sensor wired to your ecu or standalone gauge.
XtremWerk Special:
Our team offers few additional enhancements for this amazing product free of charge
- Heat shield the turbine housing - HJS ceramic heat shield and aerospace inconel protection. This upgrade reduces drastically the thermal environment around the turbine housing. You can add this option, if you are looking for a good heat management inside your engine bay.
- Custom compressor housing color - If you are looking to be unique and bring some color under the hood, we offer a custom color powder coating on any turbo charger purchased from us.
You can contact us via xtremwerk@gmail.com or our contact form for further Information and processing.
*images of the products are showing different Xona products and the real product (*compressor/turbine wheel size and design) might be different.
On Order item - lead time 1-2 weeks
