The XRE6564S comes with the brand new Xona Rotor HTE aero, optimized for high pressure ratios and extreme shaft speeds!
The revolutionary UHF™ aero XR64S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

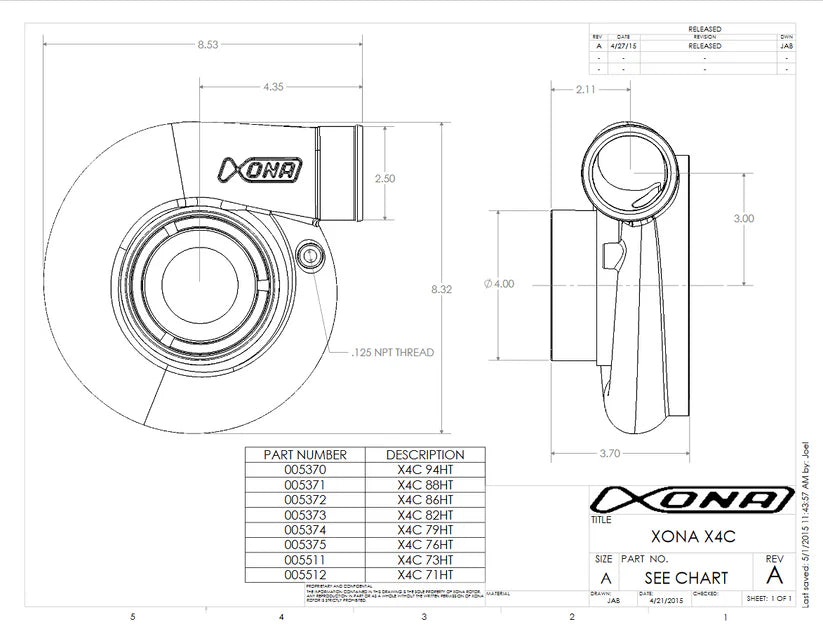

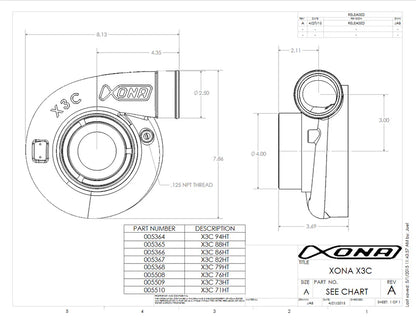

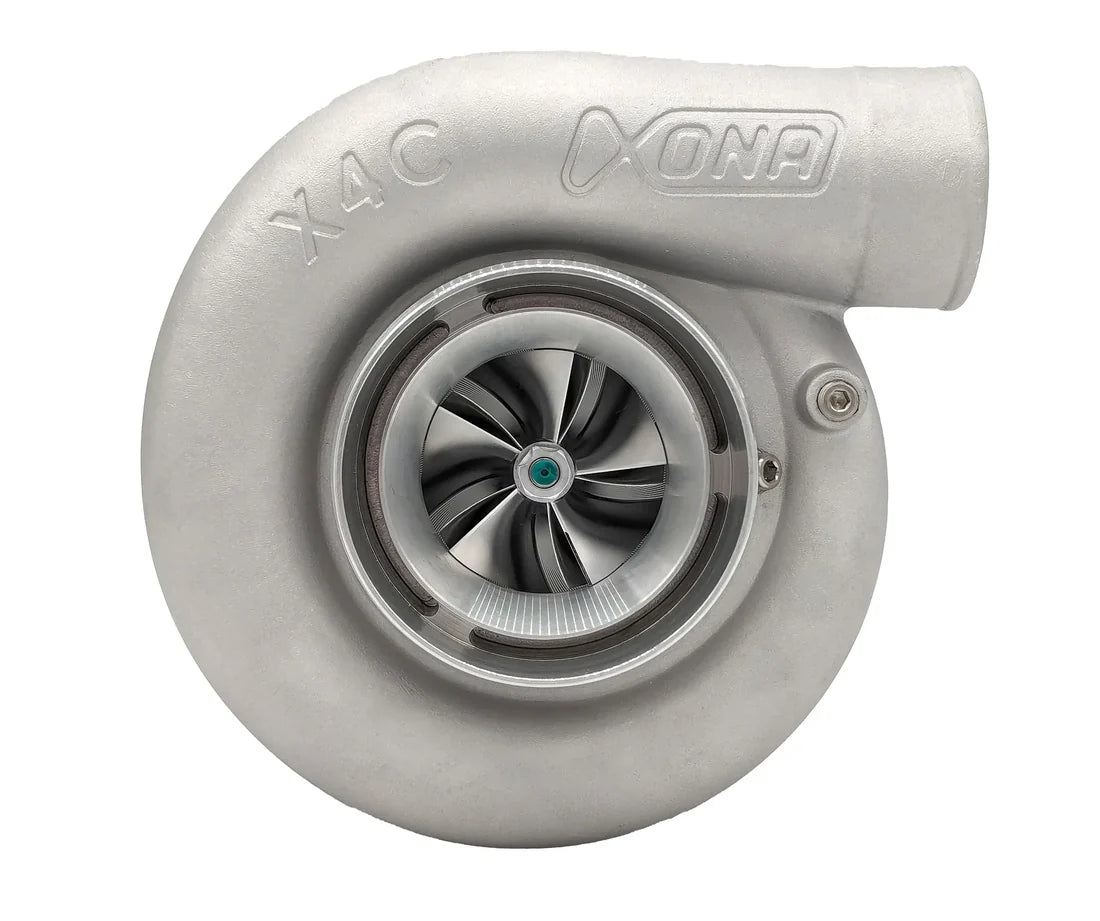

This turbocharger is available in the X3C and X4C Covers
Technical Specifications:

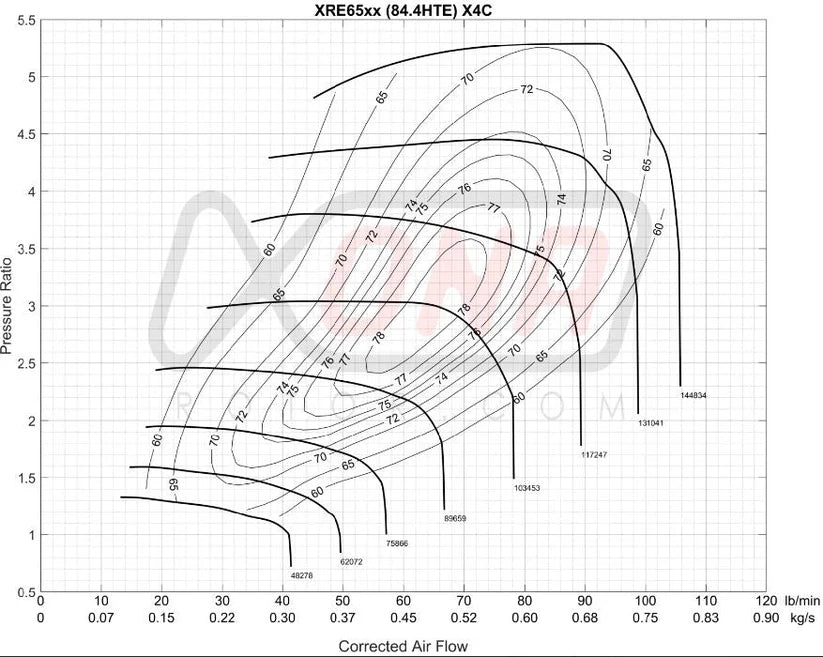

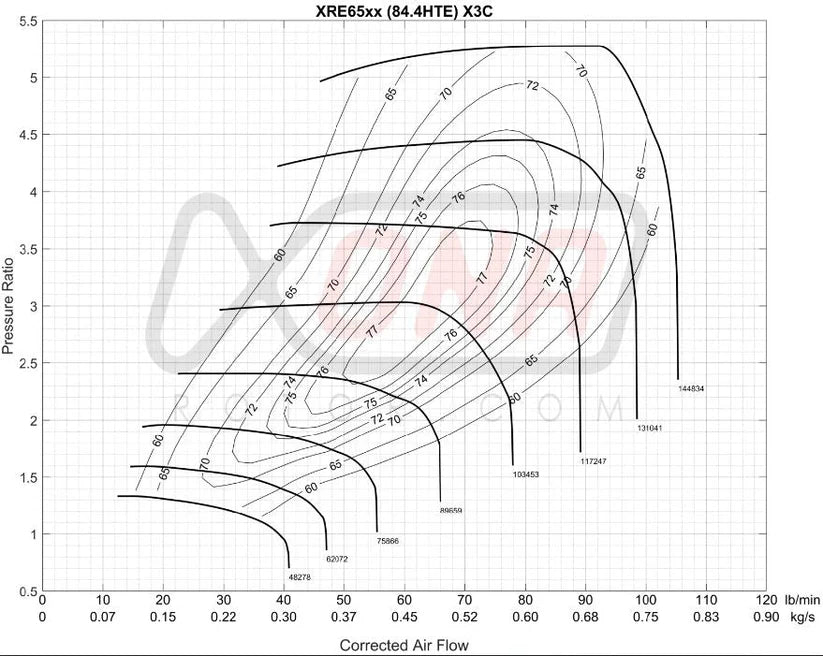

- Compressor wheel - 64.9mm Inducer / 84.4mm Exducer.
- Over 100lb/min of flow
- Compressor cover machined for M6 threaded Speed Sensor
- Turbine Outlet - 64mm UHF™
- 700-1000HP Applications.
- Variable preload angular contact bearings.
- Twin gas ring seals at the compressor and turbine.
- High strength, lightweight stainless steel center housing.
- Full hydraulic damping of the rotating assembly.
- Integrated oil contaminate filter.
- M62 race material allows higher temperature operation.
- Metallic bearing cages.
Attention:
All Xona Rotor turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
Notice:
We recommend monitoring a speed sensor wired to your ecu or standalone gauge.
XtremWerk Special:
Our team offers few additional enhancements for this amazing product free of charge
- Heat shield the turbine housing - HJS ceramic heat shield and aerospace inconel protection. This upgrade reduces drastically the thermal environment around the turbine housing. You can add this option, if you are looking for a good heat management inside your engine bay.
- Custom compressor housing color - If you are looking to be unique and bring some color under the hood, we offer a custom color powder coating on any turbo charger purchased from us.
You can contact us via xtremwerk@gmail.com or our contact form for further Information and processing.
*images of the products are showing different Xona products and the real product (*compressor/turbine wheel size and design) might be different.
On Order item - lead time 1-2 weeks
