Eventuri

Eventuri Intake BMW M3 G80, M3 G81, M4 G82, M4 G83, M2 G87 Forzen Limited

Name: Eventuri Intake BMW M3 G80, M3 G81, M4 G82, M4 G83, M2 G87 Forzen Limited
Brand: Eventuri
SKU: EVE-G8XMV2-CFM-INT
Price: 2700.0 EUR
Availability: InStock

Description

Gallery with all images on FLICKR
Details and Information on Eventuri Webpage

Part Numbers: EVE-G8XMV2-CFM-INT: BMW M3 G80, M3 G81, M4 G82, M4 G83, M2 G87 (G8X) Carbon Intake System Frozen Limited

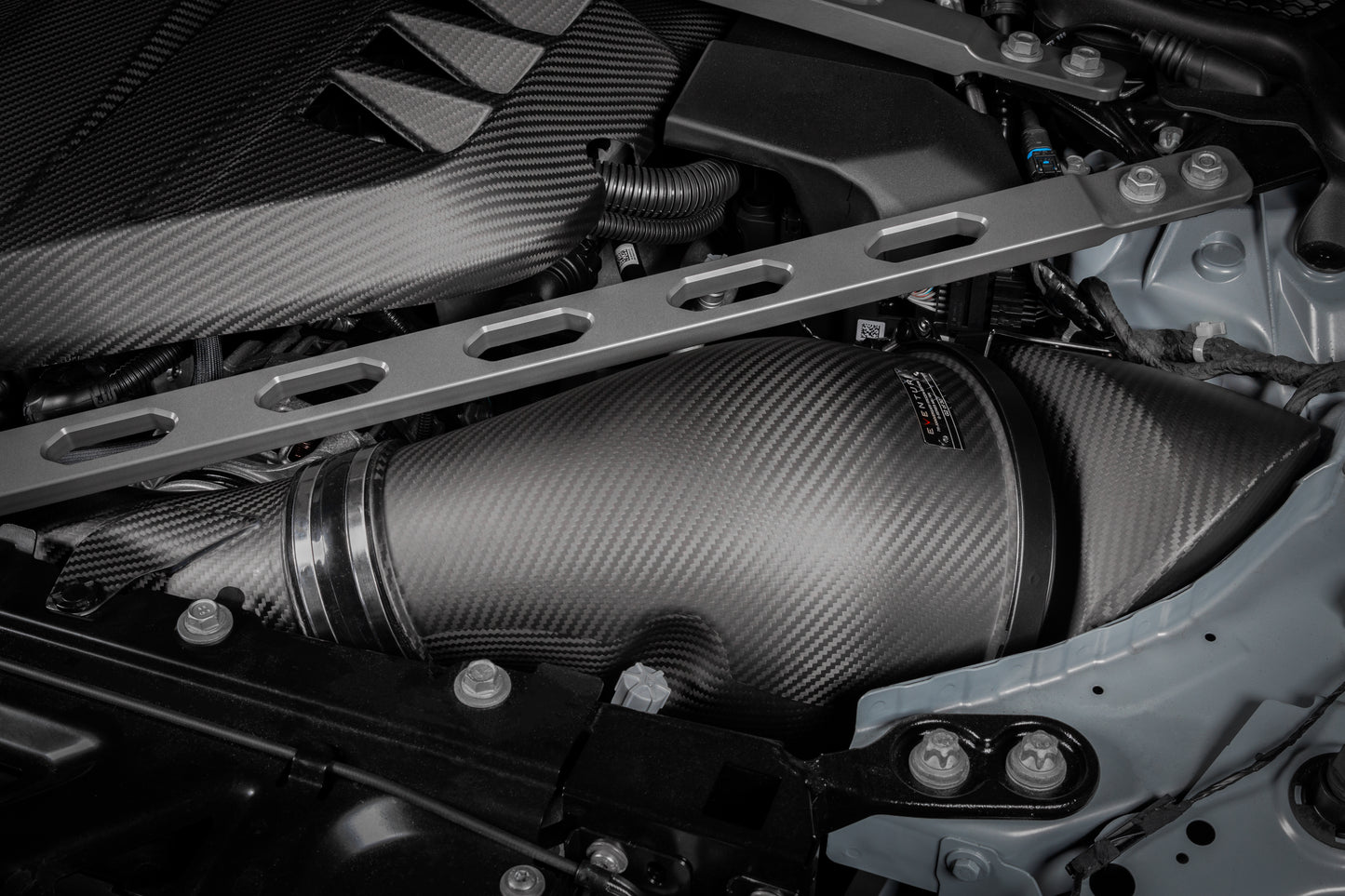

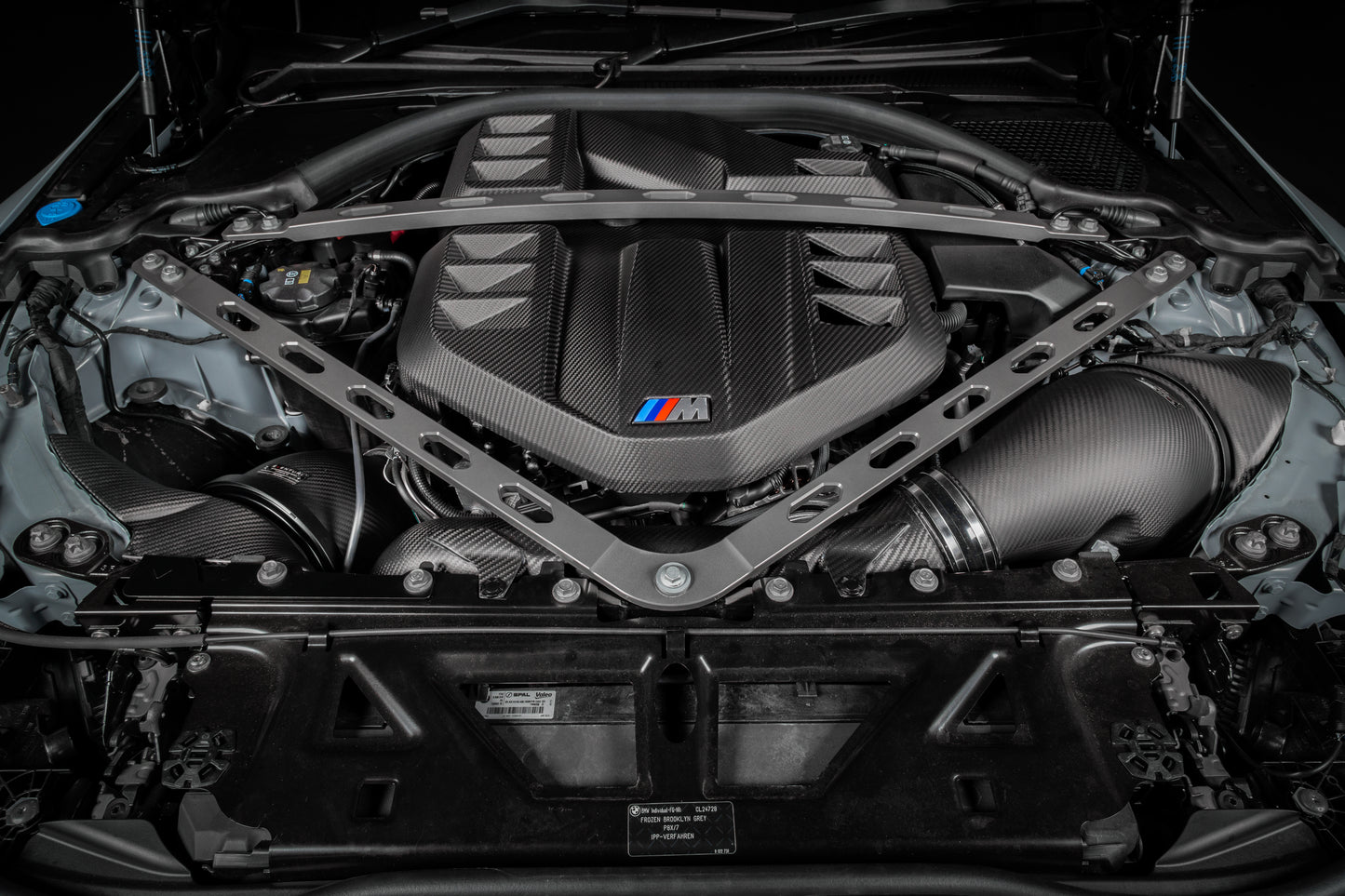

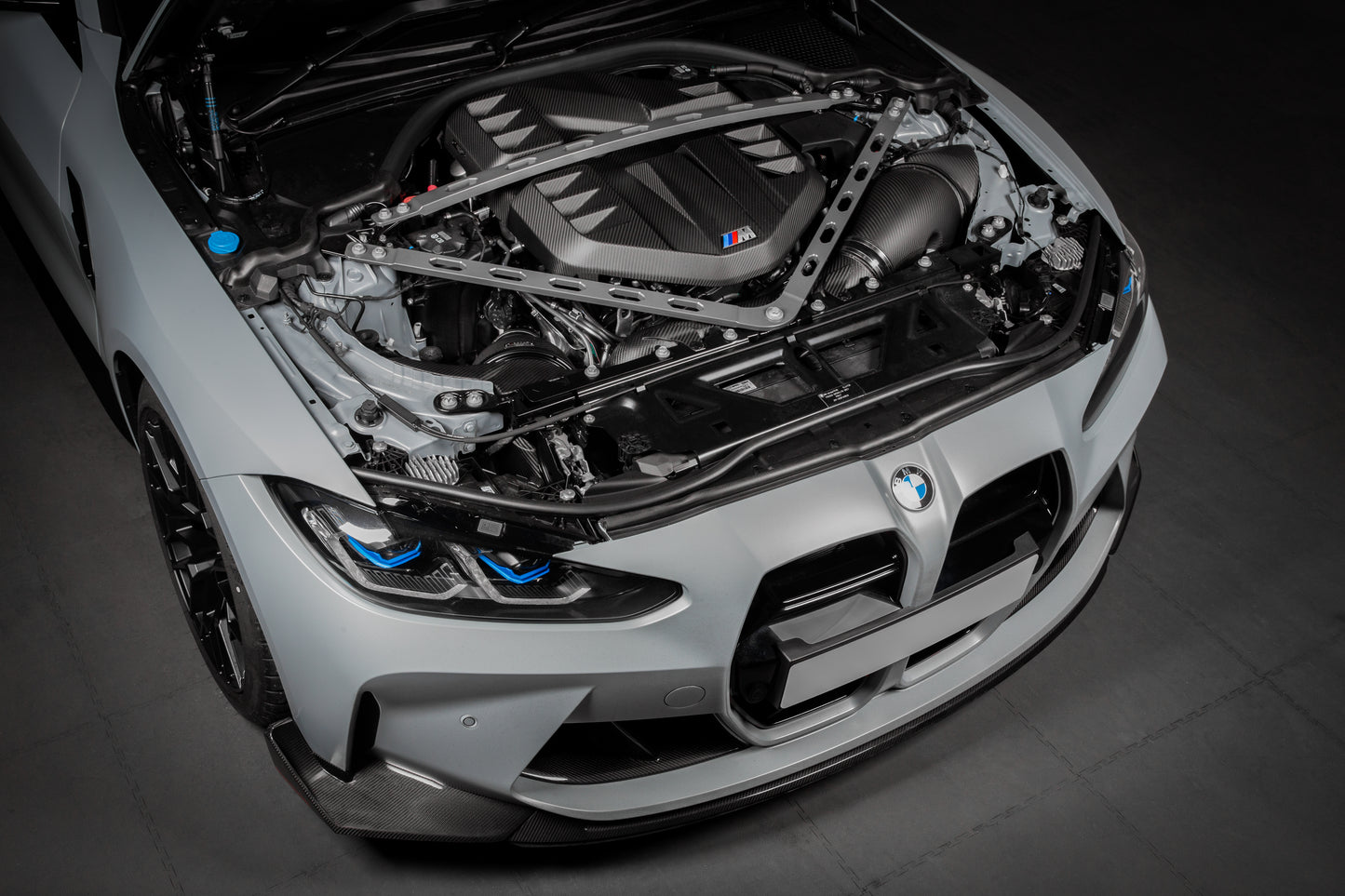

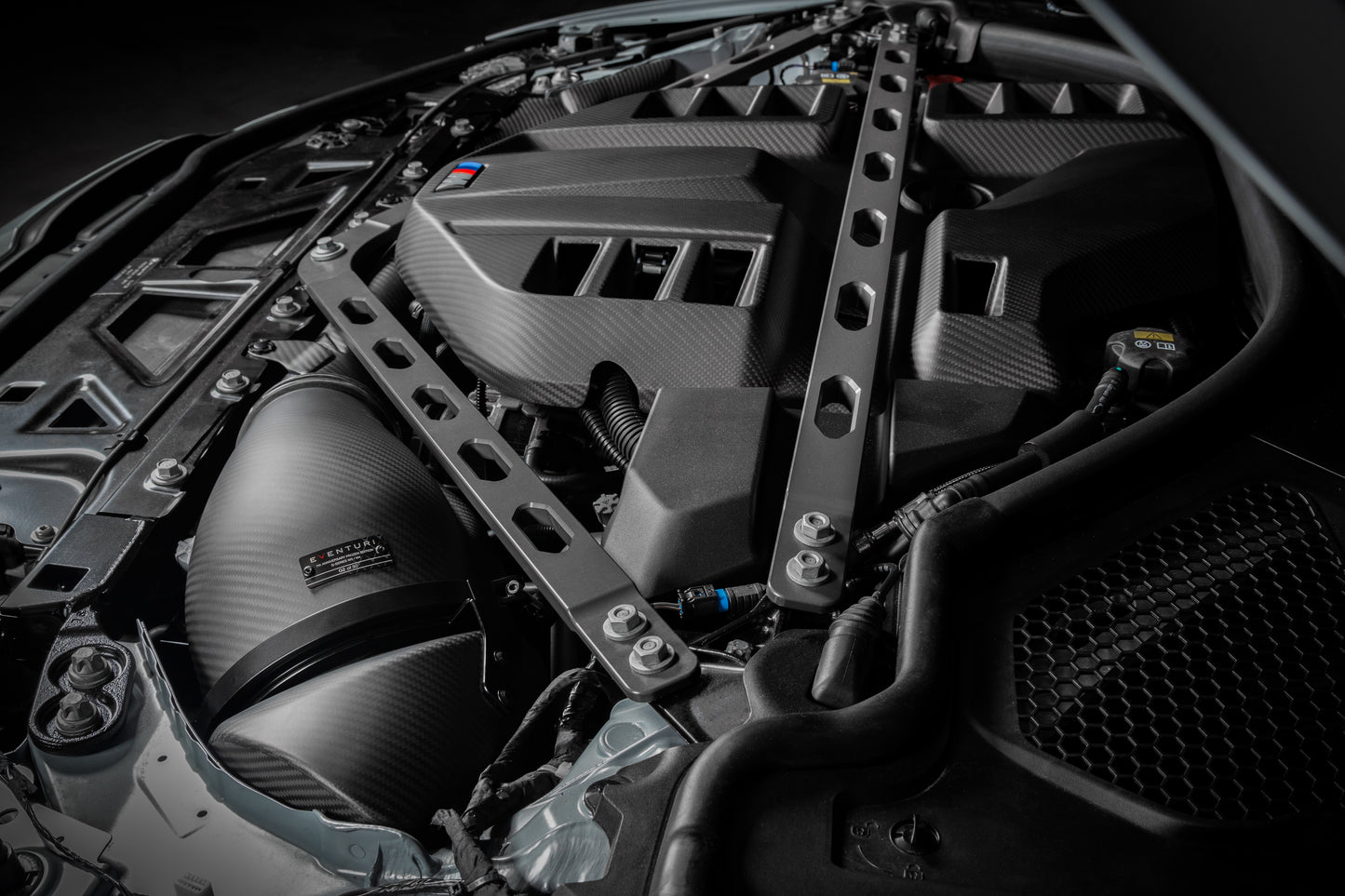

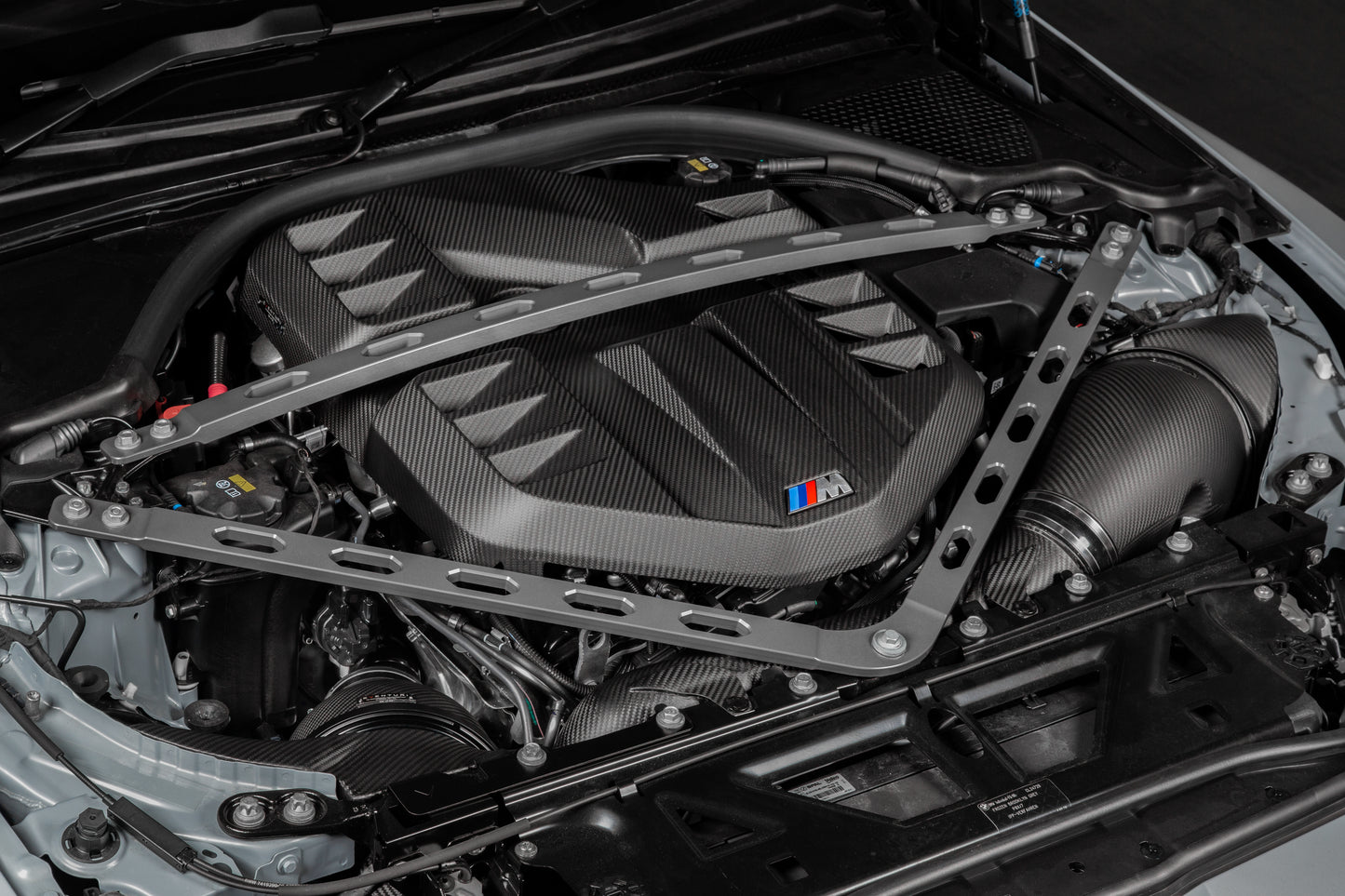

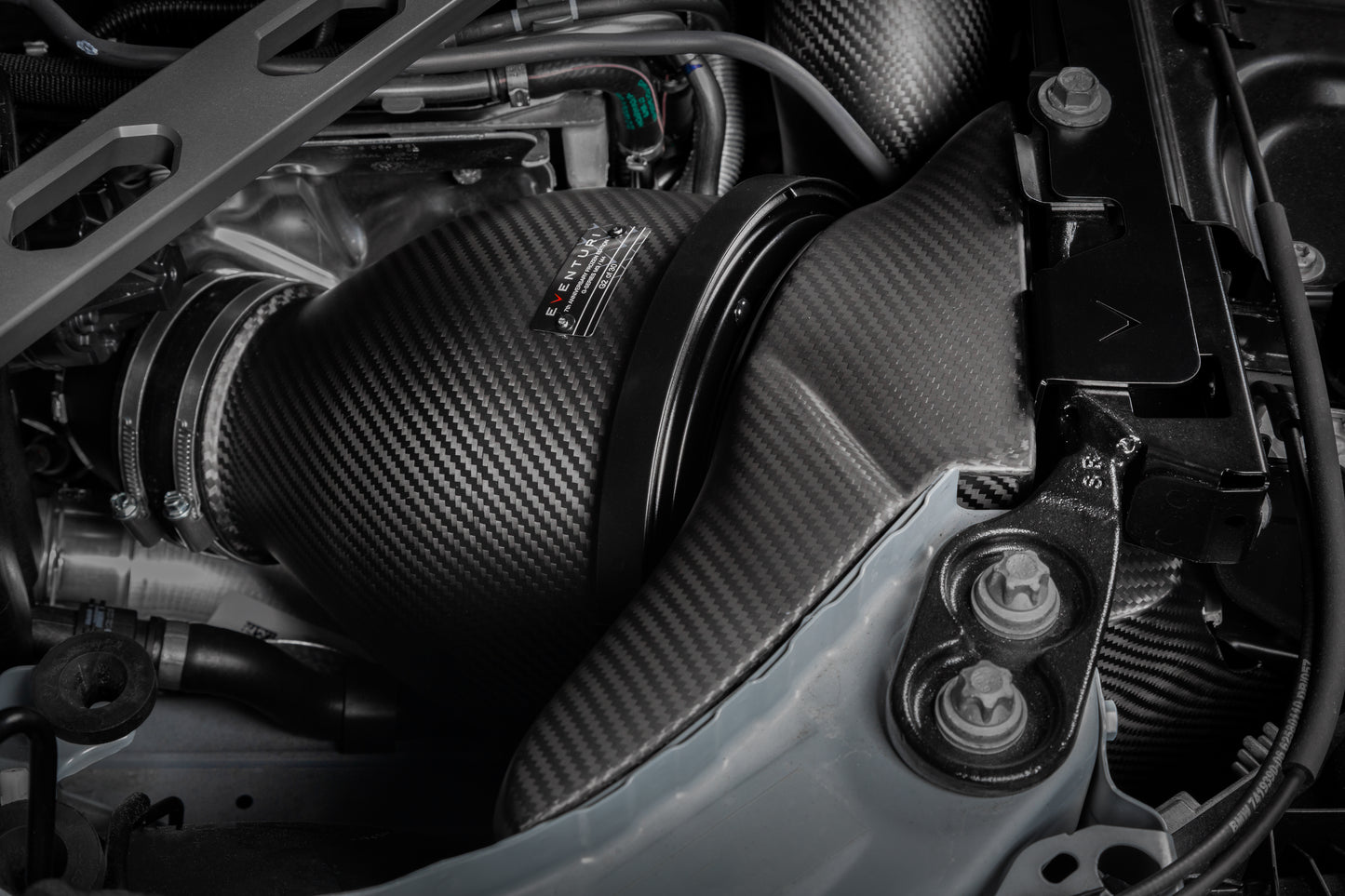

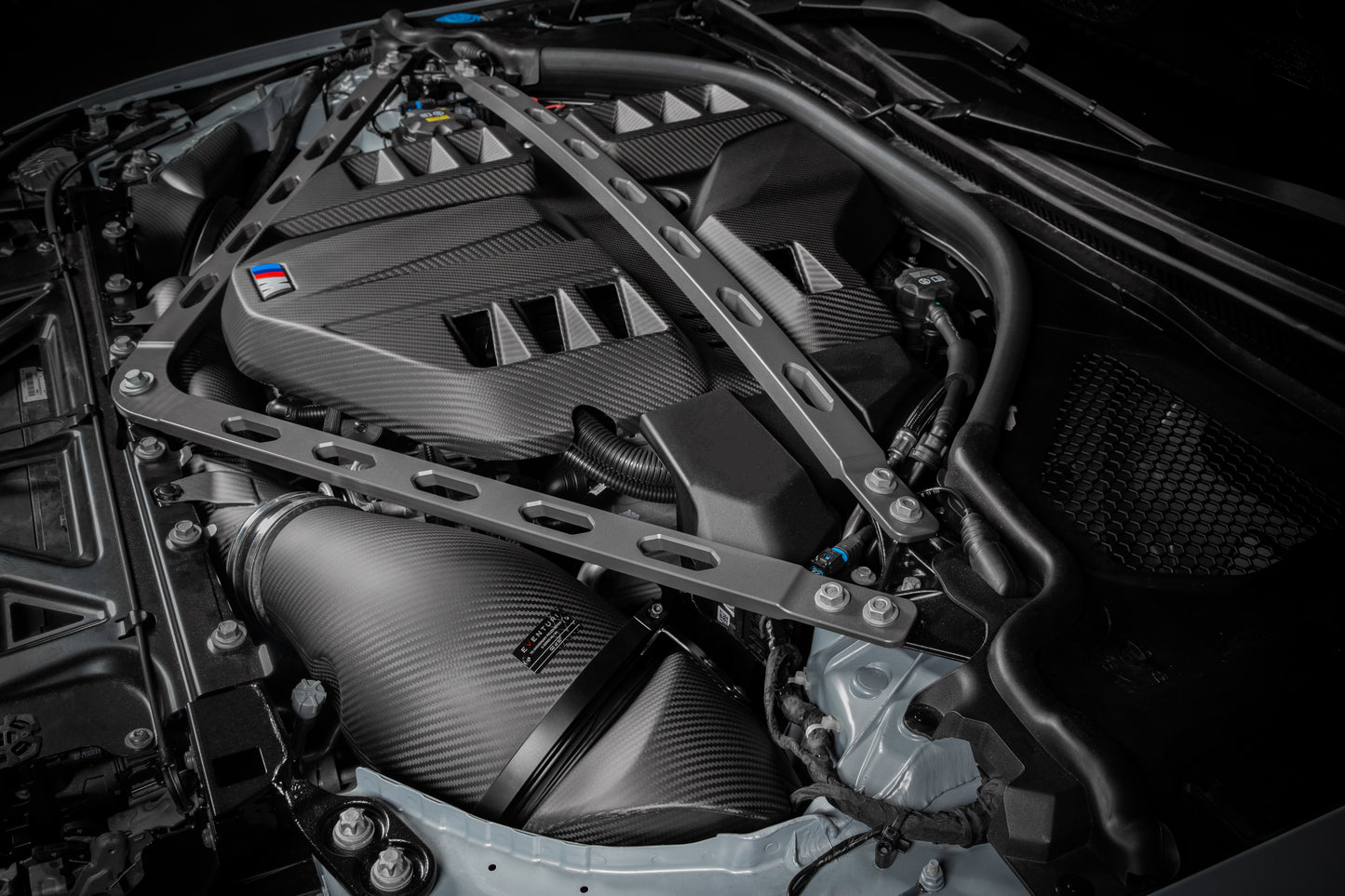

The Eventuri G8X M2/M3/M4 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

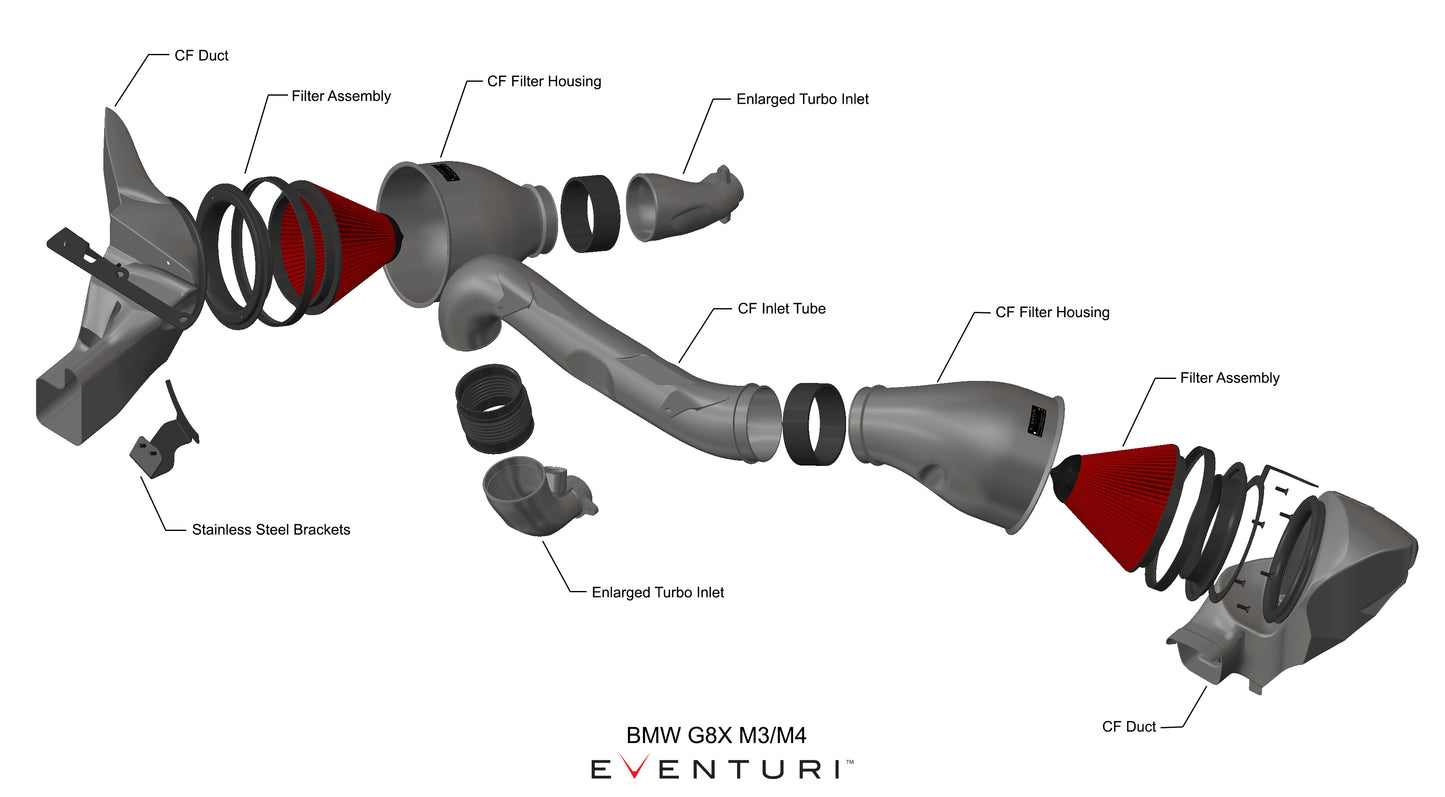

Each intake system consists of:

2 x Carbon Fiber Patented Venturi Filter Housings
2 x Bespoke High Flow Dry Cone Filters
2 x Carbon Fiber Inlet Ducts
Carbon Fiber Intake Tube
2 Thermoplastic Turbo Inlets
Laser Cut Stainless Steel Brackets
Custom Flexible Hose
CNC Machined Bracket Mounts and Reinforcement Rings

Performance Gain: 13-18hp, 12-16ft-lb (Stock Tune)
Turbo Inlet Area Increased up to 160%
Filtration Area Increased up to 40%

Presenting an intake which truly sets a benchmark for the BMW G8X M3/M4 platform. We have carried out intensive R&D to develop an intake which not only improves on the stock M3/M4 but also is future proof in its capacity to cater for high powered builds well in excess of 1000hp. Our system is a complete redesign from the airboxes to the turbo inlets with the aim of reducing pressure loss while increasing the flow rate and keeping inlet temperatures low. We have maximised the usage of the available space to employ 2 custom made filters with a 40% larger filtration area than stock. These are used in our Patented Venturi housings to smoothly funnel the air to the turbo inlets. The inlets themselves are up to 160% larger in cross sectional area than stock and are designed with an advanced dimpled inner surface to reduce frictional losses between the flow and the wall boundary. By allowing a “cushion” of air at the wall surface, airflow is able to move through the inlets at higher flow rates with reduced pressure loss. This allows the turbos to draw air with less resistance and therefore reduce the wastegate duty cycle resulting in higher overall performance.

The Eventuri Difference

The G8X M3/M4 Eventuri system uses our Patented Carbon Fiber Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect and maintains laminar flow conditions to reduce the drag on the turbo. You can read more about the housing design and how it works HERE.
